EU single screw pump series

Characteristics

- U series pump and H series pump is different in order to adapt to the special needs of the universal coupling shaft, and with the vertical pump;

- Vertical installation, pump is directly mounted on the pumping well vessel or is fixed on a wall of a conveying element is submerged in the medium.

- sticky, viscous and non - viscous, medium with or without solid particles (or fiber);

- simple structure, easy to use, easy to maintain;

- mechanical vibration of small no pulsation smooth operation.

Technical parameters

- maximum pressure:

single stage 0.6MPa

Two stage 1.2MPa

- maximum flow 100m3/h

- maximum temperature 150

- maximum viscosity: 1X106cst

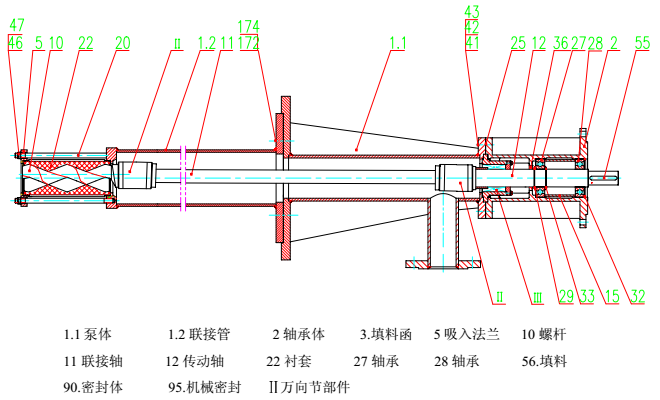

Construction

Application

- U series pump and H series pump is different in order to adapt to the special needs of the universal coupling shaft, and with the vertical pump. Normally installed, used for conveying viscous and non viscous, containing or not containing solid particles or fibers of the media. The pump is directly installed in the container to the pumping well, or is fixed on a wall, a conveying element immersed in the medium.

- U series used in all industrial fields, for example: wastewater treatment, sedimentation tank scum delivery, or for sugar industry pumping sedimentation tank in wastewater.
