SMtype three-spindle screw pump

Main Feature:

•SM three-spline screw Pump is of self priming.

•Because of the unit assembly systemevery pump can be supplied as cartridge pump for foot-, flange-,or wall mountin, in pedestal-,bracketor submersible design.

•According to the delivery medium heated or cooled designs are also available.

● Usage:

•For the handling of oil and medium with lubricating properties.


•In heating techniques as fuel oil injection, fuel supply-and transfer


•In the engineering industry as hydranlic, and telemotor pumps.

•In the chemical and food industry as cargo-, transfer or supply pumps.

•In the marine field as transfer-, booster, fuel oil pumps as well for ship hydraulics.

●Standard structure

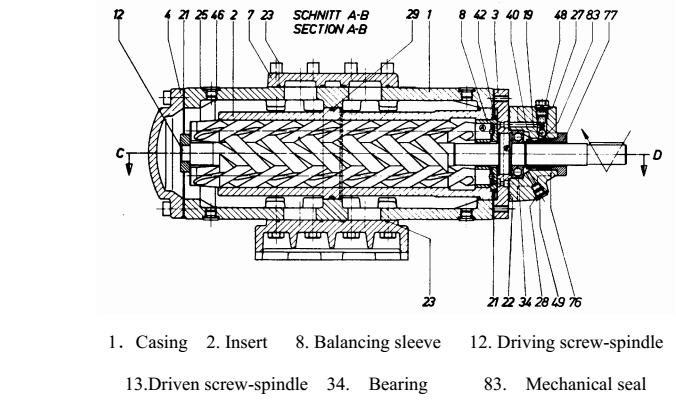

U12.1 Structure

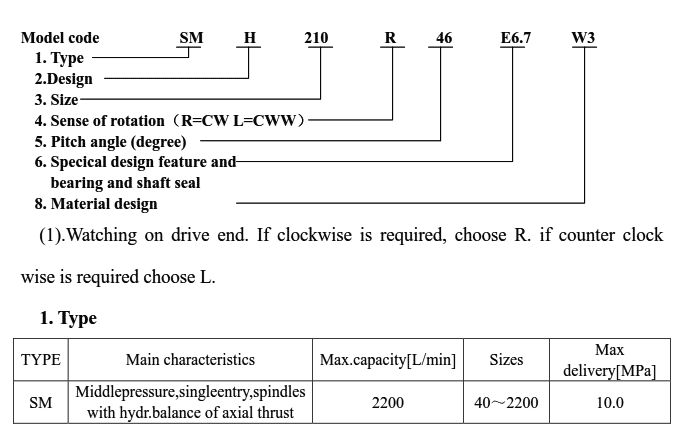

●Model code
